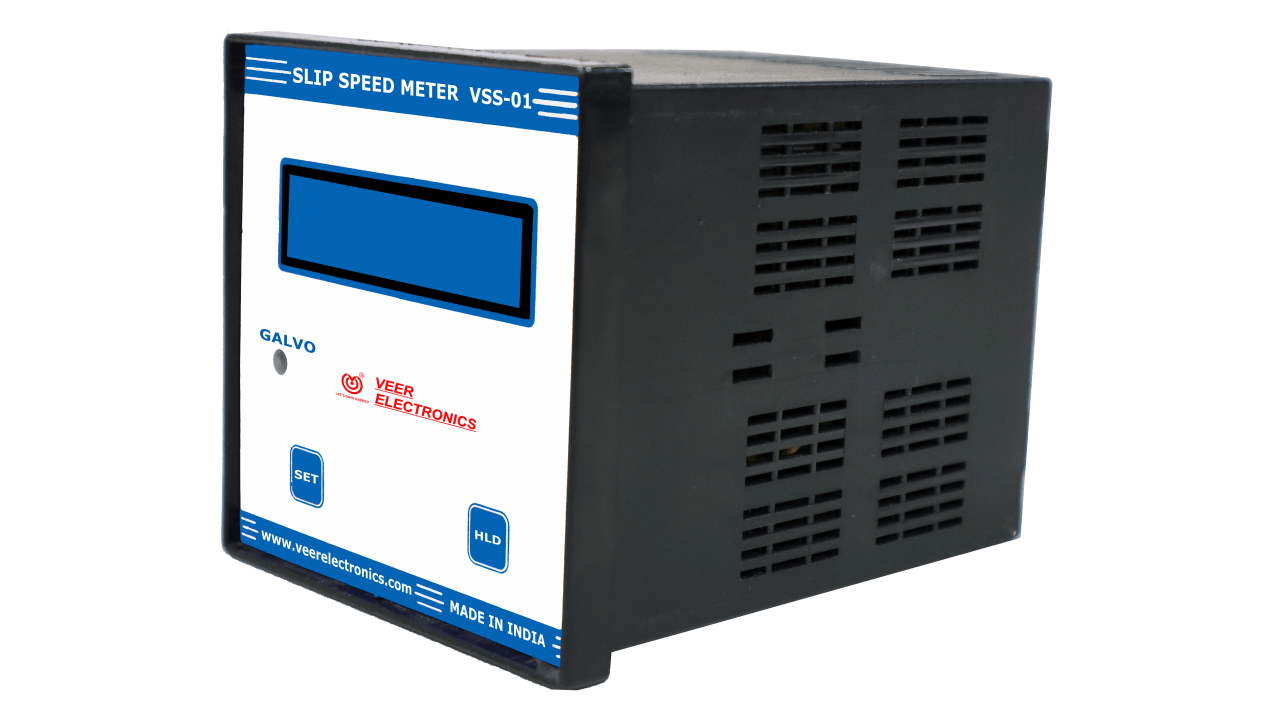

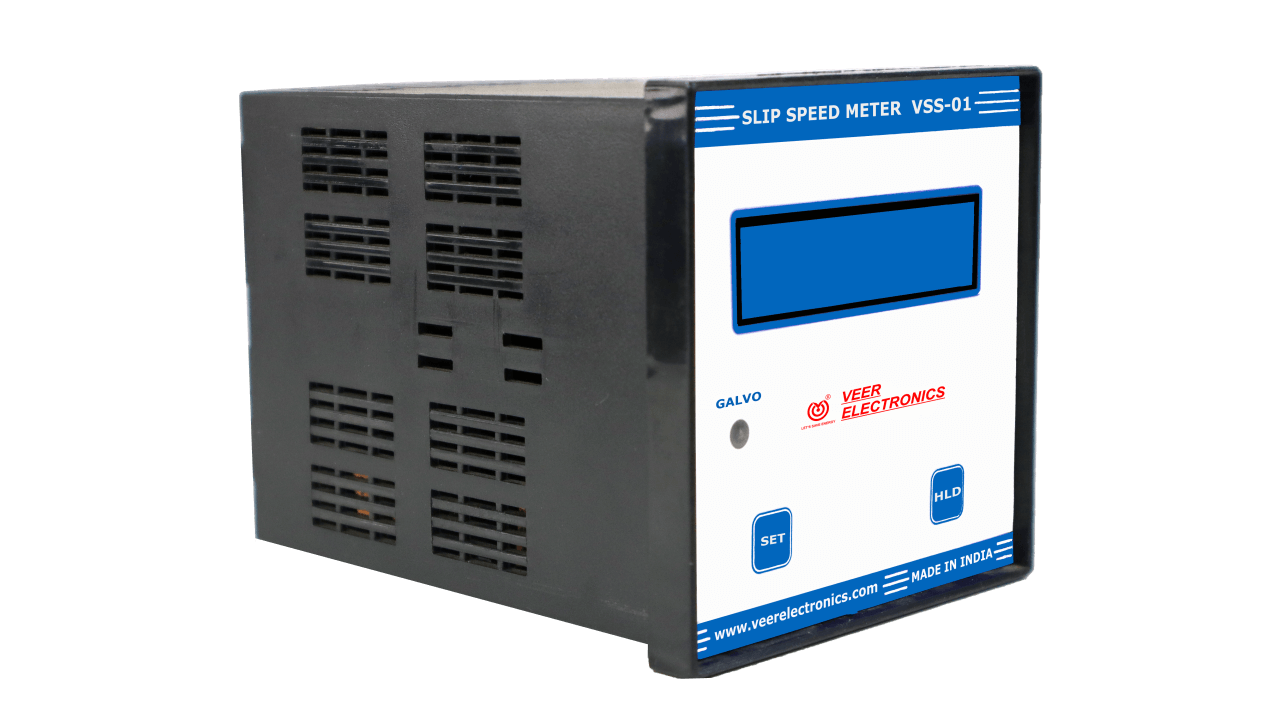

VEER make Slip-Speed Meter VSS-01 is portable instrument which is very useful to find RPM, Corrected RPM, Slip and Frequency of electric Motor. It is very simple and easy to use Instrument so, any one can operate it easily.

  • Direct Measurement of RPM, Corrected RPM, %slip, Frequency
  • Suitable for 2 / 4 / 6 / 8 Pole Motors
  • Facility to Freeze/Hold the Reading
  • Rack Mountable as well as Table Top Model

It measures signal from slip coil which is very weak slip signals. It amplifies it and then calculates RPM and %Slip and also calculates corrected RPM @ 50 Hz (60Hz on request). It also measures Line Frequency.

  • To measure RPM and %slip of submersible pumps at Line Frequency.
  • It can also be used in lab as well as in motor industry for Rotational Speed measurement (Optional)
SPECIFICATIONS
Parameters RPM, Frequency, %Slip, Corrected RPM, Pole
Measuring Range Slip: 1% - 50%, Pole: 2,4,6,8, Frequency: Line Frequency (60 Hz on Request)
Accuracy Better than ±0.5%
Computer Interface RS-232 serial interface. (Optional)
Data Transfer Rate (Baud Rate) 19200 bps.
Power Supply AC 230V ± 10% @ 50Hz (110V ± 10% @ 60Hz on request)
Size in mm (WXDXH) Overall 144 x 170 x 96 , Panel Cutout 136 x 92 (W x H)
Weight (Approx) 1.5 kg approx.
Warranty 1 Year against manufacturing defects only.
